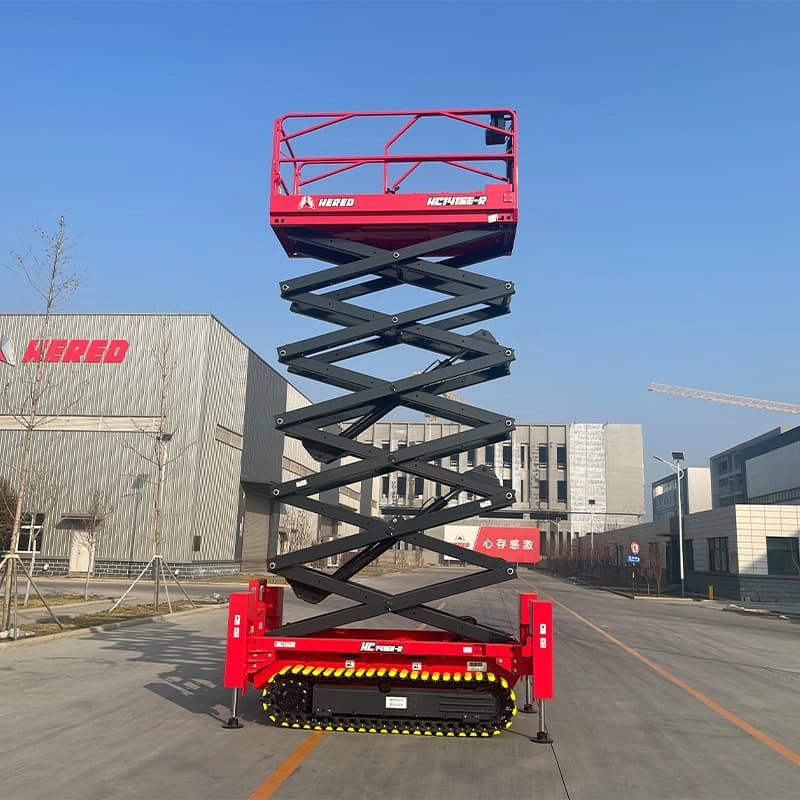

Crawler Scissor Lift HC1416E-R

1. Compact structure, light weight, accessible elevators.

2. Motor and crawler drive, lower noise, stronger passability.

3. Large capacity batteries, better endurance.

Key Features and Advantages

The HC1416E-R Crawler Scissor Lift incorporates multiple standout design elements that contribute to its excellent performance and operational benefits:

Pure Electric Drive – Zero Emissions & Low Noise

The electric motor powers the hydraulic system, resulting in zero exhaust emissions for an environmentally friendly and clean operation. It runs with extremely low noise levels, making it ideal for indoor use or quiet environments. The all-electric system also delivers smooth power output, ensuring stable operation and reduced maintenance requirements.

Crawler Chassis – Strong Off-Road Capability

The crawler travel system offers outstanding terrain adaptability and traction. It can traverse soft or uneven surfaces such as mud, grass, or gravel without getting stuck. With 300mm-wide tracks, ground pressure is minimized, protecting surface integrity. Additionally, the machine boasts a 40% gradeability, allowing it to climb steep slopes with ease.

Zero-Turn Steering – Agile Maneuverability

The dual-track design enables zero turning radius for on-the-spot rotation, allowing the machine to reposition easily even in tight or complex job sites. This is especially advantageous for aerial tasks in confined areas or when frequent repositioning is needed.

Compact Design – Easy Maintenance

The machine’s compact layout features a clean structure, with key components such as batteries, motors, and hydraulic elements arranged for easy access and maintenance. Foldable guardrails make transportation and storage more convenient (folded height is only 2.01m). The overall weight is lighter than comparable models, facilitating lifting and towing. The simplified design also means fewer failure points and easier upkeep.

Long Endurance – High-Capacity Battery

Equipped with a high-capacity battery pack (48V/300Ah), the lift supports extended continuous operation on a single charge. This ensures that it can work through a full 8-hour shift without frequent recharging, enhancing job site productivity. The battery system includes overcharge protection and a power level display for timely charging.

Multiple Safety Features

The HC1416E-R is equipped with a full safety system, including automatic brakes, anti-tilt protection, emergency stop, and emergency descent functions. If the machine operates outside safe conditions (e.g., beyond allowable tilt angles), tilt sensors will trigger alarms and prevent lifting to ensure operator safety. The platform includes a self-locking gate to prevent accidental falls, while the hydraulic system features rupture protection to prevent sudden pressure loss and platform drop. These comprehensive safety features ensure reliable and secure aerial operation.

These features enable the HC1416E-R to perform safely and efficiently across a wide range of complex environments while providing maximum convenience to the operator.

Optional Configurations and Attachments

To meet the diverse needs of clients and working conditions, the HC1416E-R offers a range of optional configurations and attachments that enhance its versatility and operational efficiency:

• Platform Work Lights: Lighting installed on the platform rails to illuminate the work area during night operations or in low-light conditions, ensuring safety and precision.

• Load Sensing System: Automatically detects the platform load and prevents overloading. If the weight exceeds the rated capacity, an alarm is triggered or operation is limited to protect both personnel and equipment.

• AC Power Outlet (to Platform): Provides 220V/110V AC power directly to the platform, allowing workers to operate electric tools such as drills or welding machines at height without dragging long extension cords, improving efficiency.

• Compressed Air Line (to Platform): Adds a pneumatic connection to the platform for operating air-powered tools or spray equipment. This is particularly useful for using air wrenches or spray guns at height, reducing the risk of suspended hoses.

These options can be installed as needed. Mounting points are pre-reserved at the factory, making upgrades or installations simple and efficient. These attachments expand the machine’s capabilities and enhance the HC1416E-R’s adaptability for specialized applications.

Application Scenarios

Thanks to its crawler-based off-road capabilities, clean electric power, and reliable aerial work performance, the HC1416E-R is well-suited for a wide range of ground conditions and industry applications:

Rugged Terrain and Outdoor Construction Sites

Construction and infrastructure sites such as building projects and bridge maintenance often involve uneven terrain, including mud, gravel roads, or slopes. The crawler drive system and automatic outrigger leveling allow the lift to operate stably on rough ground. For example, during façade installation or steel structure assembly, the HC1416E-R can climb moderate slopes and provide a steady platform for operators to reach their working height.

Municipal Maintenance and Landscaping

Tasks such as streetlight maintenance, traffic signal repair, or tree trimming often require operation over grass or soft soil. The HC1416E-R’s low ground pressure tracks prevent it from sinking into lawns or mud, minimizing surface damage and enabling direct access to the work site. Its zero emissions and low noise operation also make it ideal for use in urban streets and residential areas without causing pollution or disturbance.

Indoor Large Spaces and Industrial Facilities

In spacious indoor environments such as factories, airport hangars, and stadiums, aerial work platforms are needed for installation and maintenance tasks. However, floors in such areas may be unfinished or delicate. The crawler lift spreads its weight to avoid damaging sensitive surfaces while providing stable movement. Its electric drive system produces no exhaust, making it safe for enclosed indoor use (provided the floor supports its weight). Common applications include pipe maintenance in workshops or servicing high storage racks in warehouses.

Petrochemical, Energy, and Special Environments

In hazardous environments like petrochemical plants and mining areas where flammable materials are present, internal combustion equipment poses risks due to exhaust and sparks. The HC1416E-R’s electric drive eliminates these dangers, making it a safer choice. Its off-road capability also allows it to operate on gravel in mining sites or sandy roads in oil fields for inspection and repair tasks. The equipment is certified to safety standards such as CE and ANSI, ensuring it meets the strict requirements of high-risk environments.

In summary, the HC1416E-R is highly adaptable to both indoor and outdoor scenarios, especially where ground conditions are challenging or environmental restrictions are tight. From construction sites and factory maintenance to municipal projects and landscaping, this crawler scissor lift offers a safe and efficient solution for aerial work in diverse industries.
